Capability sheet, rev 2026-Q3

Reviewed quarterly. Out of scope: sheet metal, weldments.

Process	Work envelope	Materials	Machines
5-axis millingTrunnion machining centers, 40 and 50 taper	32 x 20 x 22 in	Aluminum, titanium, Inconel 718	9
Turning with live toolingSub-spindle, bar fed to 3.5 in	⌀14 in x 40 in	Aluminum, steel, stainless, PEEK	5
Wire EDMSubmerged, 0.004 in wire	13 x 9 x 8 in	Hardened tool steel, carbide	2
CMM inspectionTemperature-controlled lab, 68°F	24 x 24 x 18 in	All materials in scope	1 lab

Floor plan, Building A

28,800 sq ft, drawn to scale

Scroll sideways to see the whole floor.

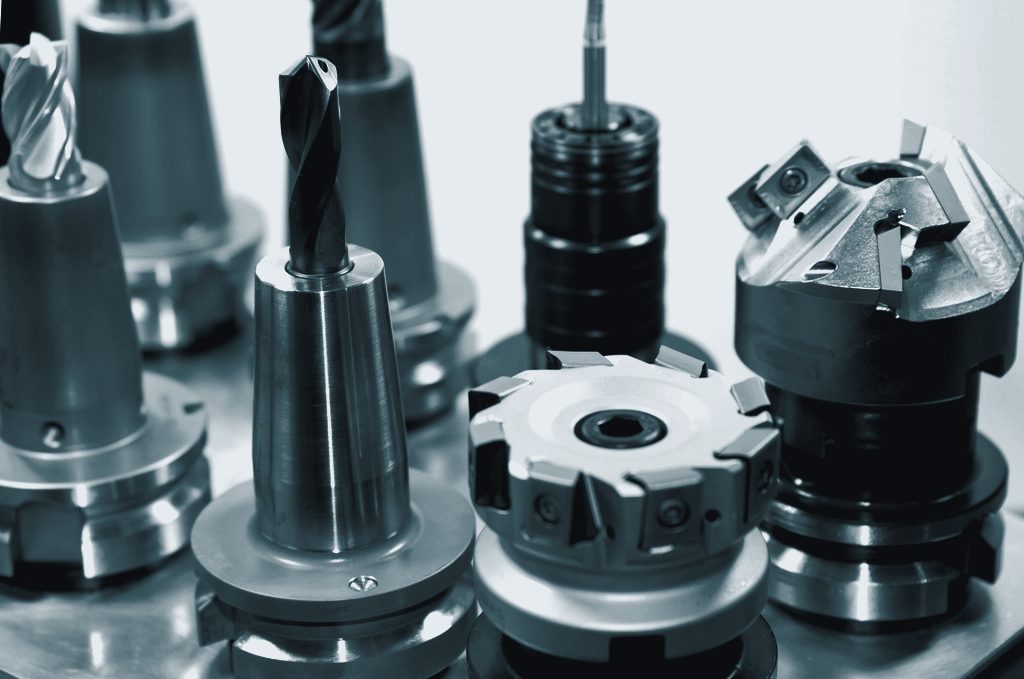

Tool holders with end mills, drills and indexable face mills lined up in a rack — **Tool crib**Holders are preset off the machine and scanned to the job. Spindle time is reserved for cutting.

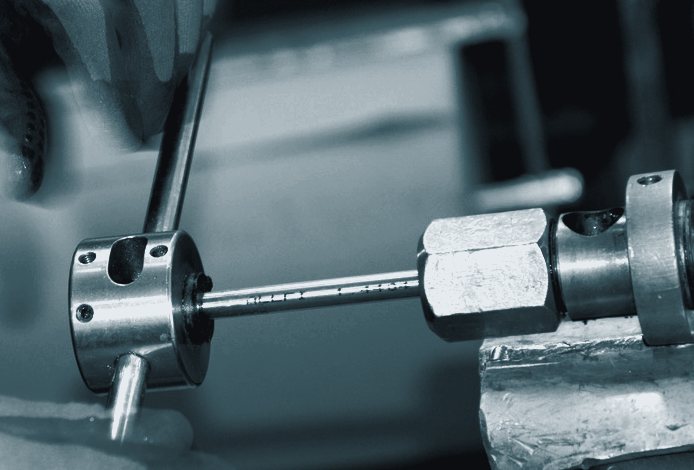

Gloved hands turning a tap handle on a steel part held in a bench vise — **Bench work**Threads chased and edges broken by hand. Each operation is logged against the traveler.

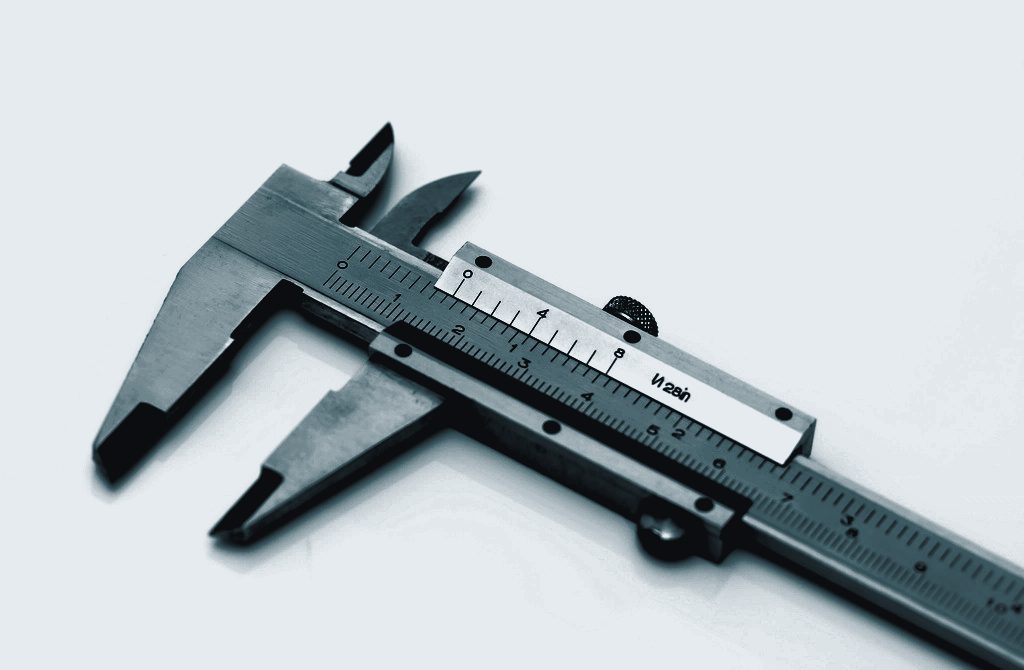

Close-up of a steel vernier caliper with its jaws open — **Inspection**Hand gauges at the machine. The CMM for the report. Both on the calibration schedule. No tolerance is quoted that cannot be measured here.

Order sequence, PO to dock

Quote to shipped part, typical

Quote
Firm price, 2 business days
Input: a STEP file and a PDF print. Output: a price, a ship date and a list of open drawing questions, within two business days.
First article
Verified before the run
The first part is fully dimensioned on the CMM. An AS9102 report ships with it. No lot enters production unverified.
Production run
Lot traceability
Each lot carries a traveler, material certs and inspection records. Status is visible in the buyer portal.
Dock
Records shipped with parts
C of C, certs and outside process records ship in the box. PDF copies are retained in the portal for seven years.

Quality system, current status

AS9100 Rev DAerospace quality management. Registered 2014. Audited annually. Status: current.
ITAR registeredControlled work is cut and stored inside a marked area. Access: US persons only.
NADCAP processingAnodize, passivation and NDT by NADCAP-accredited sources, each audited by Kestrel.
TraceabilityHeat lot to shipped part. Records retained seven years.
CalibrationAll gauges on a tracked schedule. Masters calibrated by an ISO 17025 lab.

Certificates, PO 88213Buyer portal

Certificate of conformance4471-B REV C, qty 120, 212 KBDownload
Material cert, 7075-T651 plateHeat L-40718, mill test report, 388 KBDownload
AS9102 first article, forms 1 to 3148 characteristics, all in tolerance, 1.4 MBDownload
Anodize cert, Type II Class 1Outside process, NADCAP source, 164 KBDownload
AS9100 Rev D registrationCurrent certificate, valid to 03/2028, 96 KBDownload

One folder per PO. Retention: seven years. A certificate needed three years after delivery is downloaded here, without a call to the shop.

Open orders, status by operation

Buyer portal view

Open orders, sample accountUpdated at each sign-off

PO	Part	Qty	Routing	Due
88213	4471-B bracket, rev C	120	Shipped Monday, tracking in portal	Oct 06
88240	2209-A manifold block	36	Op 30, 5-axis finish on 5X-02	Oct 17
88251	5810 titanium clevis	400	Op 50, outside passivation, back Oct 09	Oct 14
88266	3302 sensor housing, FAI	5	Op 20, CAM program in review	Oct 24

Rate schedule

Effective 2026-07

5-axis millingSpindle time, per hour	$145
CNC turning, live toolingPer hour	$110
Wire EDMPer hour, unattended overnight at half rate	$95
Programming and setupPer part number, quoted with the job	from $450
First article, AS9102 reportPer part number, up to 150 characteristics	from $180
Minimum order	$750
ExpediteRoughly half the standard lead time	+25%

Contacts by responsibility

Direct to the floor. No account managers.

AM

Anne Marek

President

Ran aerospace programs for two decades before buying the shop in 2019. Signs every quote over $50,000.

26 years in aerospace, PMP

TH

Tom Hsu

Quality manager

Owns the AS9100 system, first articles and every corrective action. Contact for any nonconformance.

ASQ CQE, AS9100 lead auditor

BL

Bri Lindqvist

Lead CAM programmer

Programs the 5-axis cells. Reviews every new print for manufacturability before it is quoted.

12 years, 5-axis simultaneous

CF

Curtis Fahey

Second shift lead

Runs the floor from 3 p.m. to 1 a.m. Answers the AOG line when a part is needed overnight.

18 years, journeyman machinist

Standing clarifications, all quotes

C-01. Minimum order

$750 per order. Prototype quantities of one to five are accepted and typically ship in two to three weeks, with a full first article report.

C-02. ITAR and export-controlled work

Accepted. Kestrel is ITAR registered. Controlled parts remain inside the marked area on the floor plan. Files move through an encrypted portal. Declare the control on the quote request.

C-03. Files required for quotation

A STEP file and a dimensioned PDF print with revision. Parasolid, IGES and native SolidWorks files are also accepted. A customer NDA is signed before any file is sent, on request.

C-04. Anodize, plating and NDT

Managed in house, performed by audited NADCAP-accredited sources. Certs are posted to the buyer portal. The buyer issues one PO and receives one delivery date.

C-05. Aircraft on ground, same night

AOG line: (316) 555-0107, any hour. Second shift runs until 1 a.m. A machine is opened the same night when material is on hand. The second shift lead takes the call.

Street map of south Wichita between Kellogg and 31st Street South, with the shop on South West Street between Harry and Pawnee — Site location, sheet 3 of 31 in = 0.4 mi© OpenStreetMap contributors

Site, hours, receiving

2650 S West St
Wichita, KS 67217

Monday	6:30 a.m. to 5:00 p.m.
Tuesday	6:30 a.m. to 5:00 p.m.
Wednesday	6:30 a.m. to 5:00 p.m.
Thursday	6:30 a.m. to 5:00 p.m.
Friday	6:30 a.m. to 3:00 p.m.
Saturday	Closed, AOG line only
Sunday	Closed, AOG line only

ReceivingDock doors 1 and 2 on the south side, 7:00 a.m. to 3:30 p.m. weekdays.
VisitorsPark in front. Use the orange visitor door. Photo ID required. Tours of the controlled area require US-person status confirmed one day ahead.
HolidaysClosed the week of July 4 and from December 24 to January 1. The AOG line stays on.
After hours(316) 555-0107 reaches the second shift lead until 1 a.m., then the on-call manager.

RFQ turnaround:2 business days.

Measured from receipt of a complete package. A part outside scope is returned with the reason and the type of shop suited to it.

STEP or native CAD fileRequired
PDF print with revisionRequired
Quantity and need-by dateRequired
Material certs or source rulesIf any
Finish, NDT and flow-down clausesIf any

NDA firstCustomer NDA returned signed the same day, before any files are sent.
By emailquotes@kestrelprecision.example. Attach the files and PO terms.
Reviewed byThe lead CAM programmer and the quality manager. No sales desk.

±0.0004 in,held on aerospaceand defense parts.
